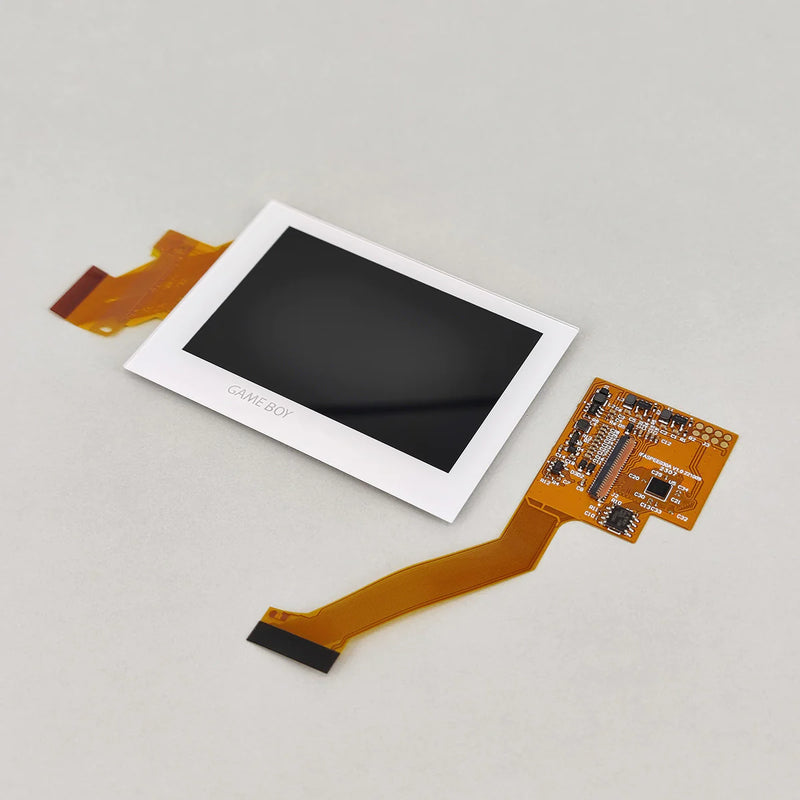

IPS Laminated 3.0 LCD (with text) for Game Boy Advance SP
Sold out
Original price
$59.99
-
Original price
$59.99
Original price
$59.99
$59.99
-
$59.99
Current price
$59.99
Introducing Funny Playing's Laminated IPS display designed specifically for GBA SP! This latest version boasts significant enhancements compared to the original GBA SP IPS, notably a larger 3-inch display that is now affixed to the LCD to ensure a dust-free installation. Additionally, users can now take advantage of the OSD menu to easily fine-tune display settings to their liking.
Features
- Crisp, vibrant display
- Fast refresh rate with no blur
- 8 Level brightness control, 4 color options & 3 pixel options
- Laminated screen lens eliminates the need for lens installation
- Compatible with IPS Molded shells or trimming of the top shell of the SP required

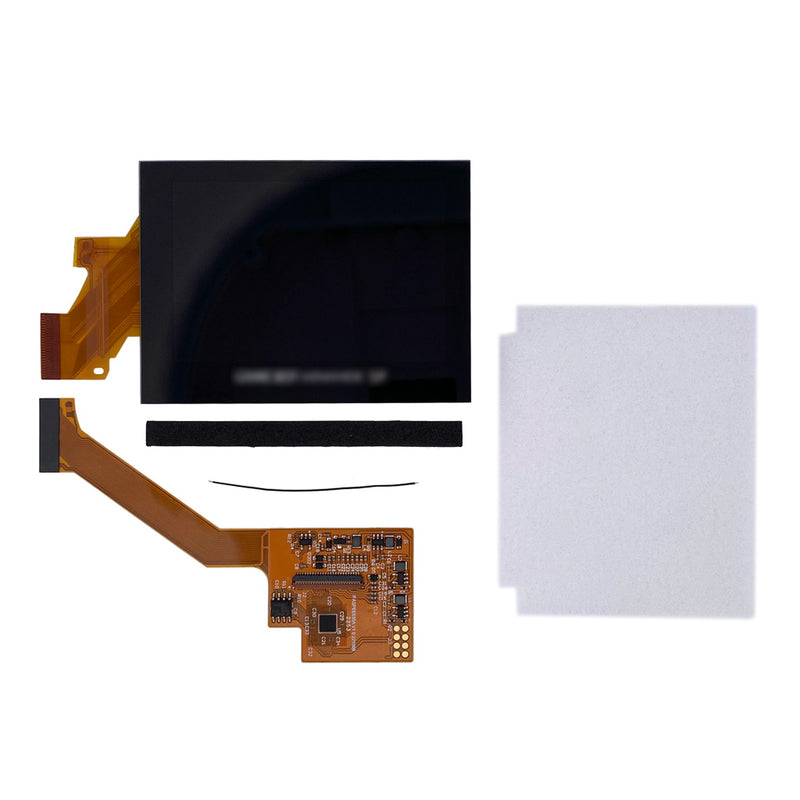

Included
- 1x Laminated IPS LCD (pre-attached with a glass lens)
- 1x Ribbon Cable
- 1x 50mm wire (display control)
- Foam Support
Documentation
The functionality of the LCD is as follows:
- A short tap of the brightness button will cycle up through 8 brightness levels
- A long hold of the brightness button will enter function mode

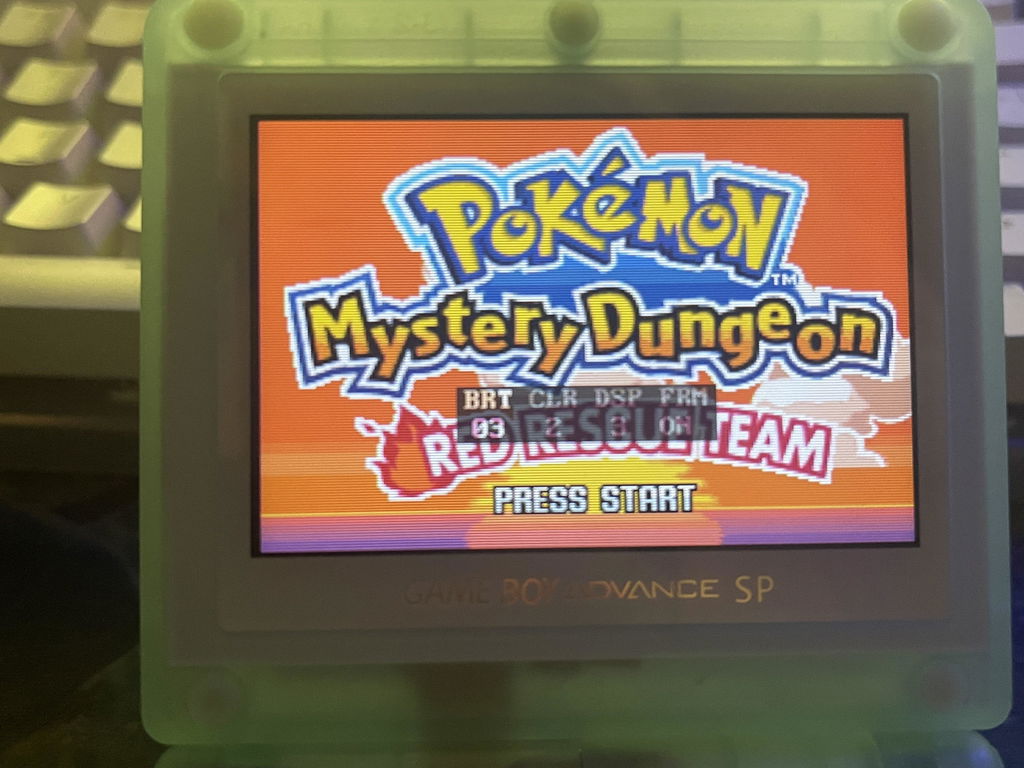

- While in function mode:
- Holding the brightness button will cycle through the different functions
- Tapping the the brightness button will cycle through each functions options
- The "BRT" function will affect the 8 brightness levels
- The "CLR" function will affect the 4 color options (Standard, Saturated, Grayscale, “Classic Green”)
- The "DSP" function will affect the 3 pixel options (standard, Anti-aliasing, Pixel Grid
- The “FRM” function will toggle frame blending
Notes
- This is an aftermarket product and may not feel identical to its genuine counterpart
- Some shell trimming is required.
- Some soldering is required, see the installation guide linked in the documentation section.
Warning
- We strongly recommend testing the display before installing it in your Game Boy Advance. Please follow our Display Testing Guide to confirm the kit is working before the adhesive is secured, the display protection sheet removed, or any non-critical soldering to the ribbon or driver PCB. We are unable to accept returns or replacements on kits that have been installed in a console. Individual replacement parts may be available in the "Included" section above.
- The ribbon is very fragile, be sure to handle it carefully to avoid damage.
- Too much pressure can permanently damage the display, do not force the shell closed around the LCD. Ensure the shell is properly trimmed for the display before attempting to install it.
