Drop in 2.45 Inch Backlight IPS LCD Kit for Game Boy Color
Drop in 2.45 Inch Backlight IPS LCD Kit for Game Boy Color
Drop in 2.45 Inch Backlight IPS LCD Kit for Game Boy Color
Drop in 2.45 Inch Backlight IPS LCD Kit for Game Boy Color
Drop in 2.45 Inch Backlight IPS LCD Kit for Game Boy Color
Drop in 2.45 Inch Backlight IPS LCD Kit for Game Boy Color

Drop in 2.45 Inch Backlight IPS LCD Kit for Game Boy Color

by Hispeedido
$57.99 - $57.99
$57.99
$57.99 - $57.99
$57.99

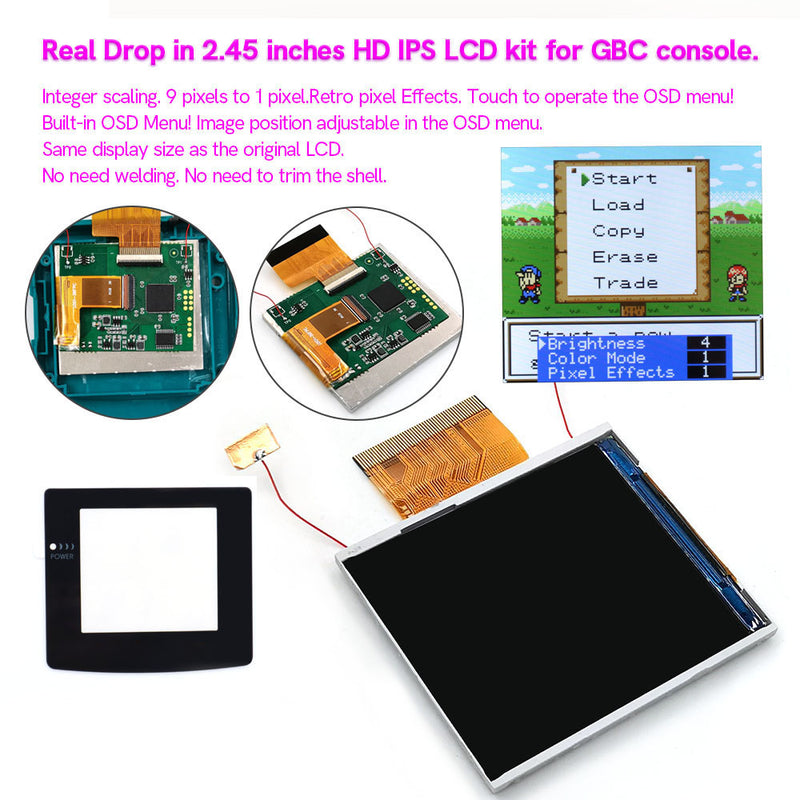

Enhance your Game Boy Color using the HISPEEDIDO 2.45" Drop-In Backlight LCD Kit. Installation requires no soldering or modifications to the shell. It maintains the original screen size with a precise 9:1 pixel integer scaling. Tailor your gameplay visuals through 8 distinct color modes and 15 brightness settings. The integrated OSD menu provides straightforward control over image customization.

Features

  • No Soldering
  • No Shell Trimming (Cartridge pin trimming may be required)
  • Same display size as the original screen
  • 9 to 1 pixel Integer Scaling

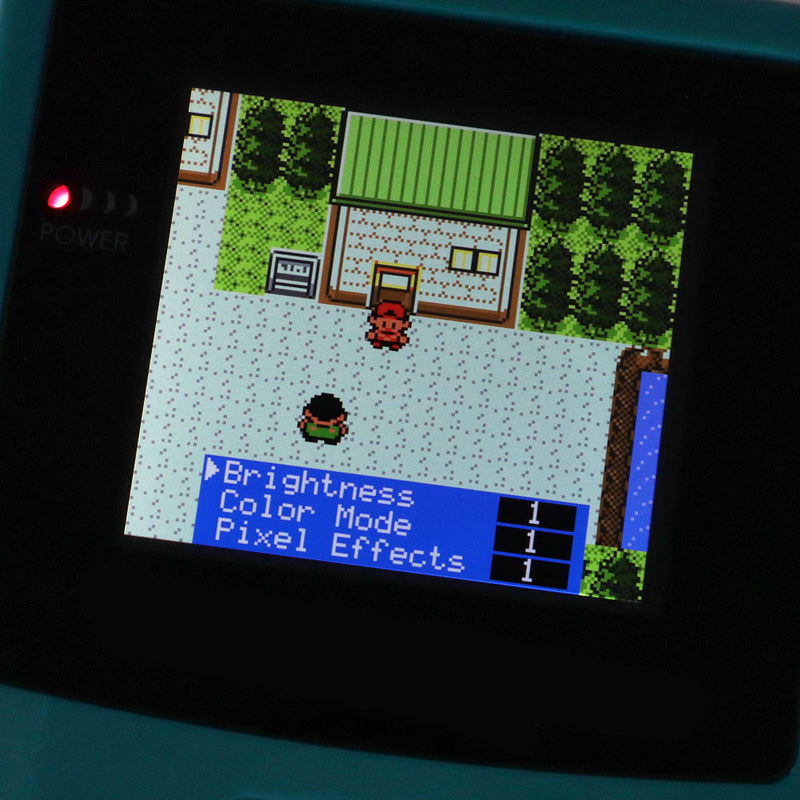

  • Built-in OSD Menu

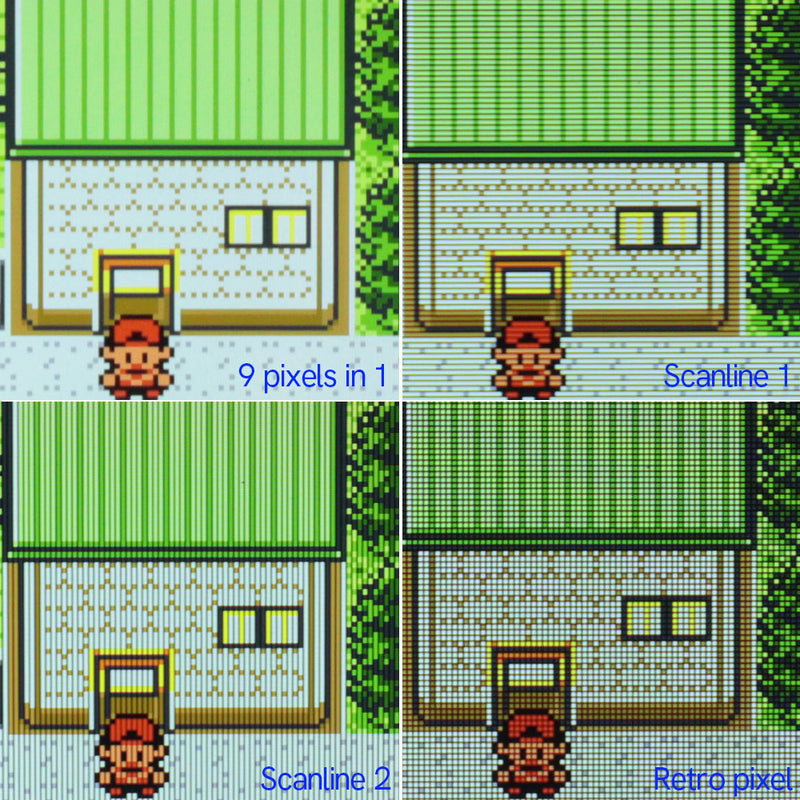

  • Retro pixel effects
  • 15 brightness levels

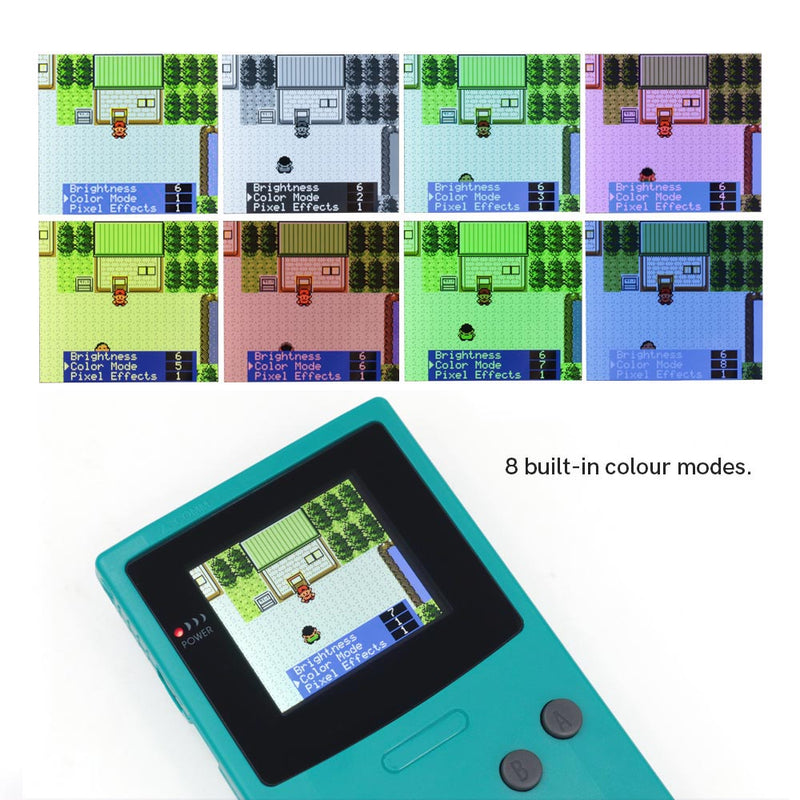

  • 8 color modes
  • Frame blending function (OSD Menu only)
  • Image position adjustable in the OSD menu

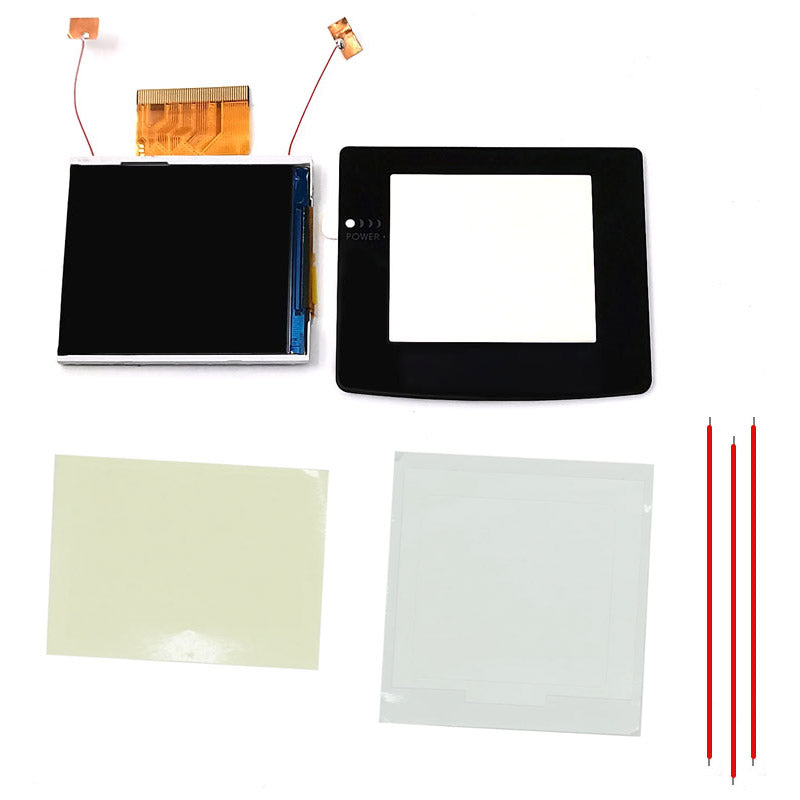

Included

  • 1x LCD
  • 1x Glass screen lens
  • 1x PCB with touch sensors
  • 1x Ribbon adaptor
  • 1x Insulation Film
  • 1x Adhesive
  • 3x Wires



Notes

    • OSD can be operated with touch sensors (no soldering required) or button presses (requires soldering).

    Documentation

    OSD Menu Activation:

    • Touch the two touchpads for 5 seconds to active the OSD menu.
    • Touch the left touchpad to select an option when OSD Menu activated.
    • Touch the right touchpad to adjust the option when OSD Menu activated.

    Warning

    • To test this display you will need to solder the wire!
    • We strongly recommend testing the display before installing it in your console. Please follow our Display Testing Guide to confirm the kit is working before the adhesive is secured, the display protection sheet removed, or any non-critical soldering to the ribbon or driver PCB. We are unable to accept returns or replacements on kits that have been installed in a console. Individual replacement parts may be available in the "Included" section above.
    • The ribbon is very fragile, be sure to handle it carefully to avoid damage.
    • Too much pressure can permanently damage the display, do not force the shell closed around the LCD. Ensure the shell is properly trimmed for the display before attempting to install it.
