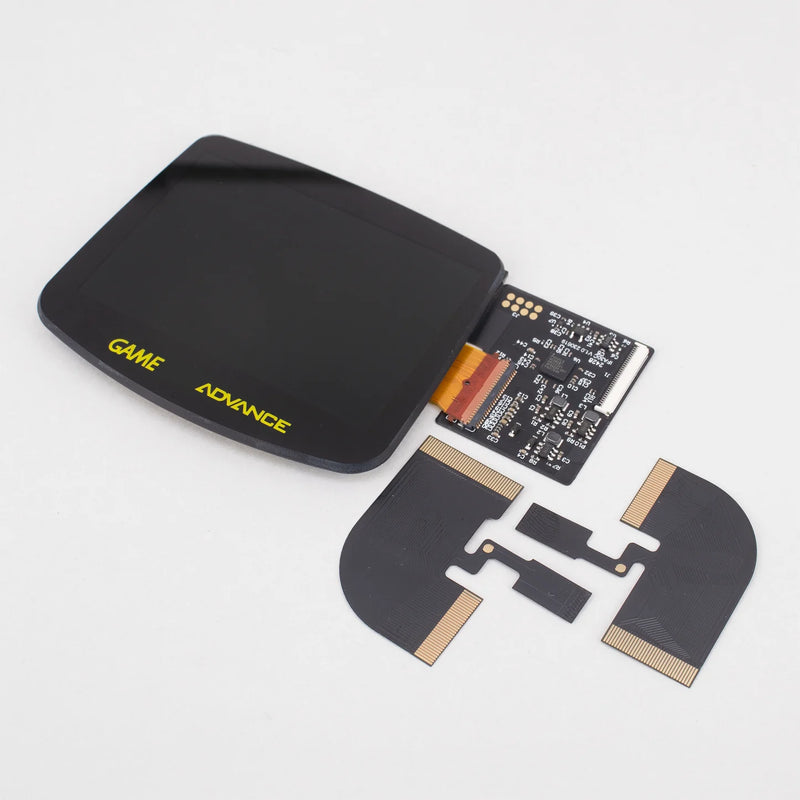

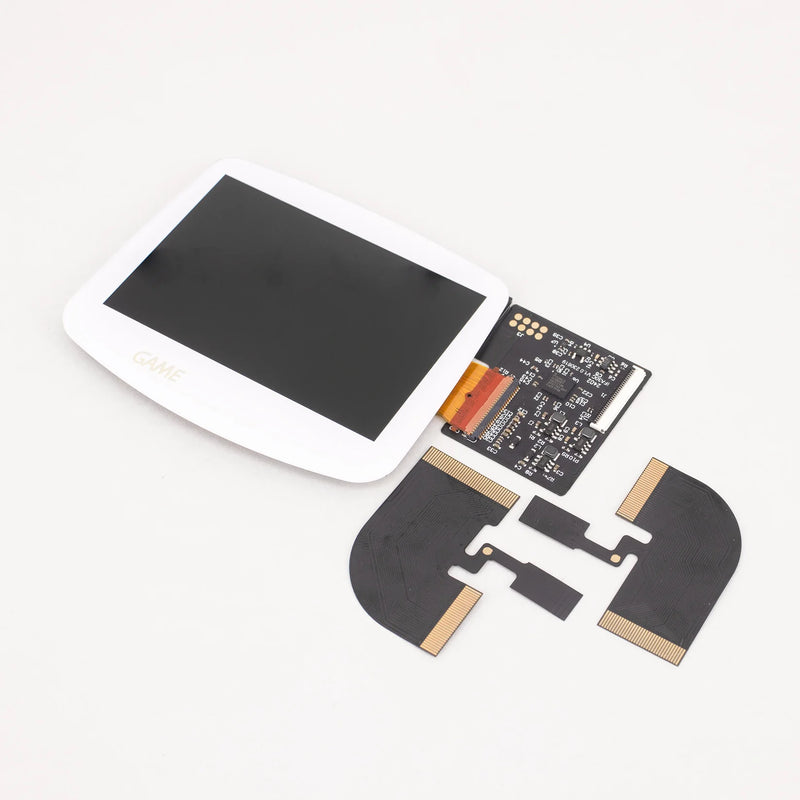

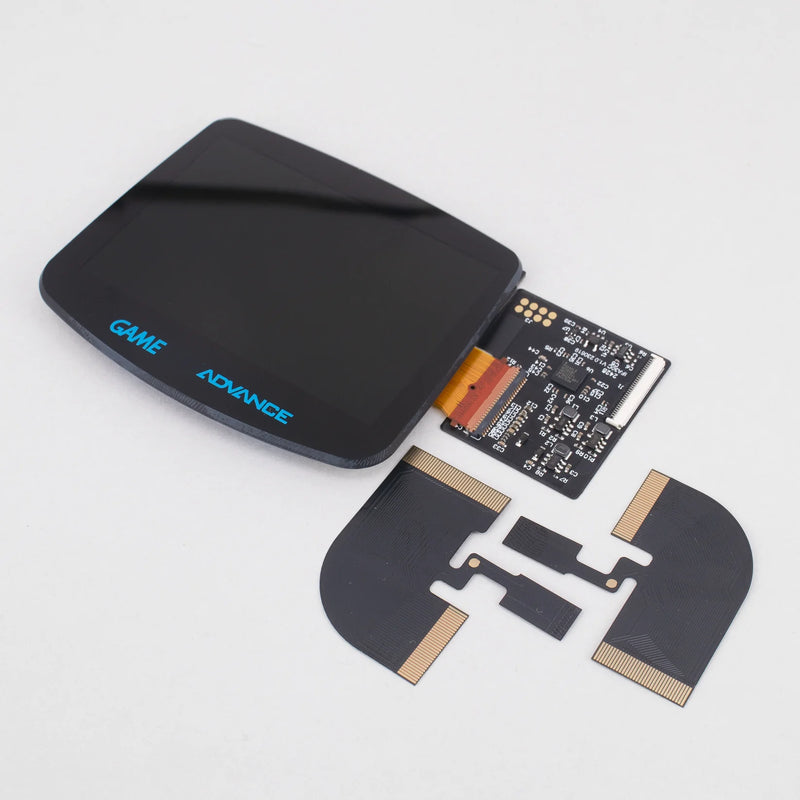

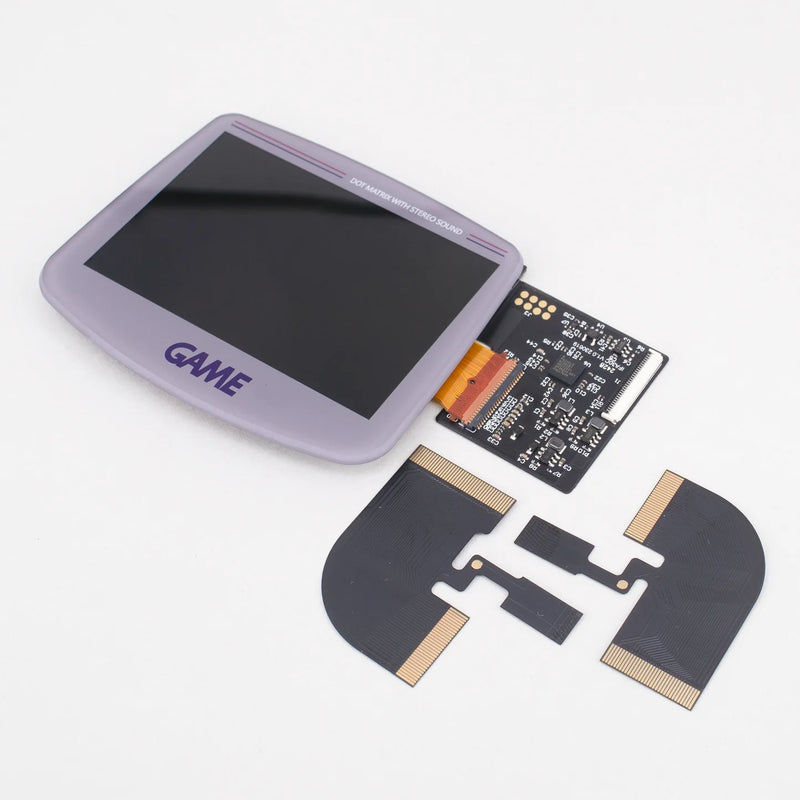

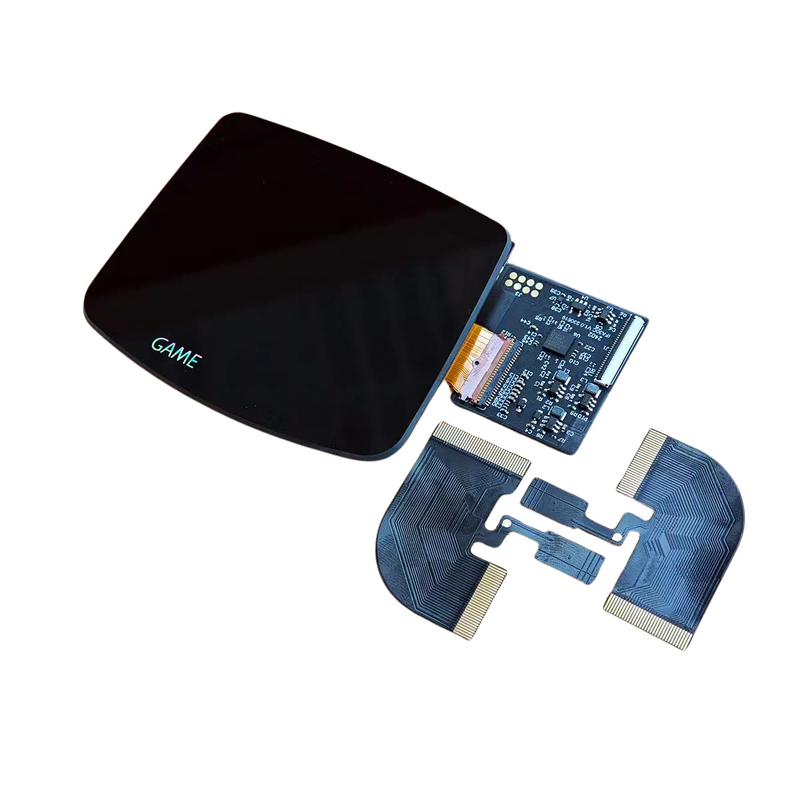

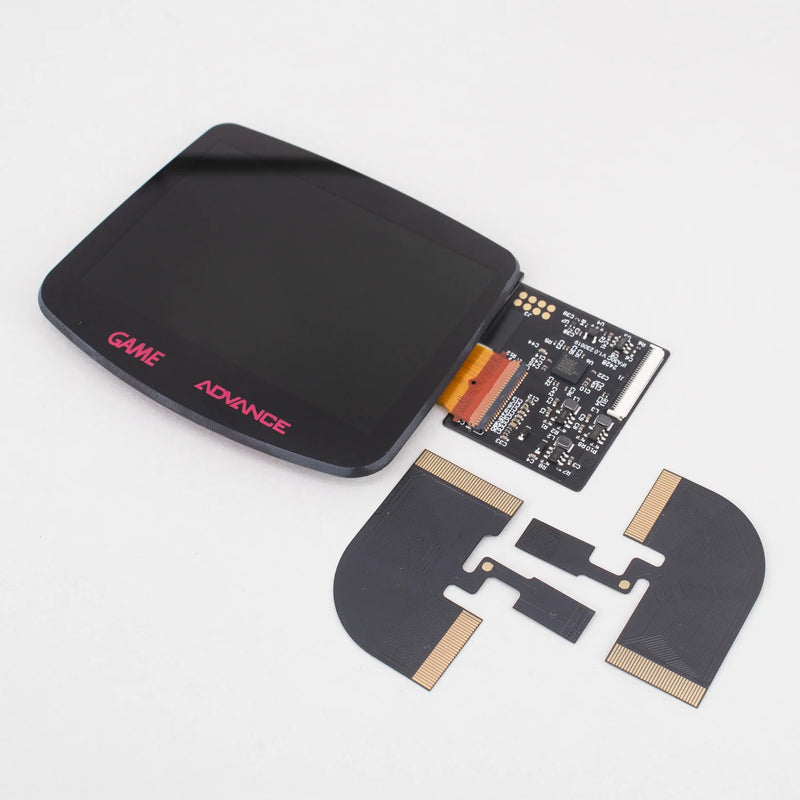

FunnyPlaying 3.0 Inch IPS LCD GBA Backlight Kit M2

Give a modern look to your GBA with this new Funnyplaying display!

Please read the product description carefully and in its entirety before purchasing.

Replacement Cables now available.

Features

• The panel have a 99% coverage of the sRGB color gamut and achieves a maximum luminance of 500 cd/m².
• OSD menu with power-off memory.

• 15 brightness level (consumption from 0.27w to 0.58w)
• No soldering is required if you only use OSD menu for brightness
• 5 color effects (normal, high contrast, retro color, grayscale, GB green)
• 3 Display effects (full pixel, interpolation, retro CRT)
• FMR mode (mixed frame)
• 3 color gamuts (warm, original, highlight ( turns all white pixels on to make them the brightest))

Included

• 1x IPS LCD

• 1x Ribbon cable (main)
• 2x Extension Ribbon cable
• 3x wires


Documentation

Notes

• Some soldering is required only to use the console brightness button
• The brightness settings are available within the OSD menu if you don't solder the brightness button
• All OSD function operations can be done with the touch sensor

• This Display requires a dedicated shell, the original and aftermarket shells are incompatible with it.

Warning

• We strongly recommend testing the display before installing it in your console. Please follow our Display Testing Guide to confirm the kit is working before the adhesive is secured, the display protection sheet removed, or any non-critical soldering to the ribbon or driver PCB. We are unable to accept returns or replacements on kits that have been installed in a console. Individual replacement parts may be available in the "Included" section above.
• The ribbon is very fragile, be sure to handle it carefully to avoid damage.
• Too much pressure can permanently damage the display, do not force the shell closed around the LCD. Ensure the shell is properly trimmed for the display before attempting to install it.
