ITA TFT Backlight LCD for Game Boy Advance

ITA TFT Backlight LCD for Game Boy Advance

by Funny Playing
Sold out
$58.99 USD - $58.99 USD
$58.99 USD
$58.99 USD - $58.99 USD
$58.99 USD

Looking to modernize the screen on your GBA, while still maintaining something of a retro aesthetic? This ITA TFT Backlight LCD uses the bottom screen of the Nintendo DSI in combination with a custom ribbon cable to make implanting this screen into your Game Boy Advance as easy as possible!


Features

  • Similar to AGS-101 display, but with improved colours and no ghosting
  • Same viewing area as the OEM displays, making it compatible with stock and 101 screen lenses
  • Touch brightness controller
  • Position adjust feature (hold select + L + R for three seconds to activate, and us L + R to reposition display vertically; hold inputs again to use L + R to reposition display horizontally)

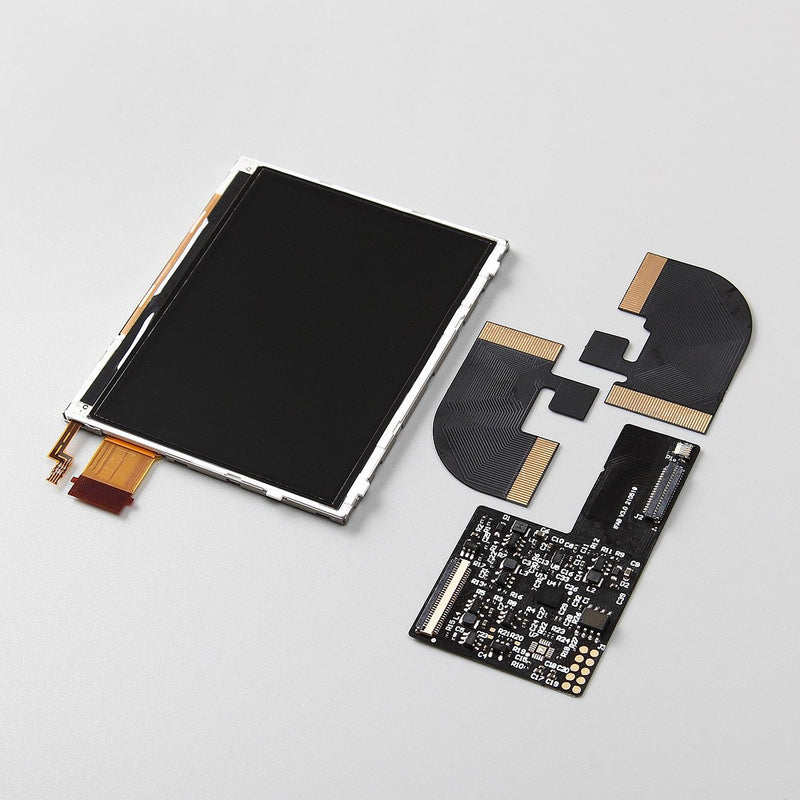

Included

  • 1 x TFT LCD
  • 1 x Main ribbon
  • 1 x 32 pin ribbon
  • 1 x 40 pin ribbon
  • 3 x wires

    Notes

    • This is an aftermarket product and may not feel identical to its genuine counterpart
    • On 40 pin boards, you will need to remove the C54 capacitor
    • Some soldering and trimming of the shell is required to install this mod
    • There are three plastic tabs along the edge of the LCD, which must be trimmed of prior to installation

    Warning

    • We strongly recommend testing the display before installing it in your Game Boy Advance. Please follow our Display Testing Guide to confirm the kit is working before the adhesive is secured, the display protection sheet removed, or any non-critical soldering to the ribbon or driver PCB. We are unable to accept returns or replacements on kits that have been installed in a console. Individual replacement parts may be available in the "Included" section above.
    • The ribbon is very fragile, be sure to handle it carefully to avoid damage.
    • Too much pressure can permanently damage the display, do not force the shell closed around the LCD. Ensure the shell is properly trimmed for the display before attempting to install it.
