V5 IPS LCD Backlight Kit with Laminated Lens and OSD Kit for Game Boy Advance SP

Give your SP a modern look with this new Hispeedido display!

Please read the product description carefully and in its entirety before purchasing.

Features

• Easy to install!
• Pre-Laminated Glass Screen

• Drop-in ready/compatible only with Hispeedido Laminated Shells
• 720x480 Display resolution (HD LCD, 9 pixels to 1 pixel, Integer Scaling, No distortions)
• Wide View angle (up to 178 degrees)

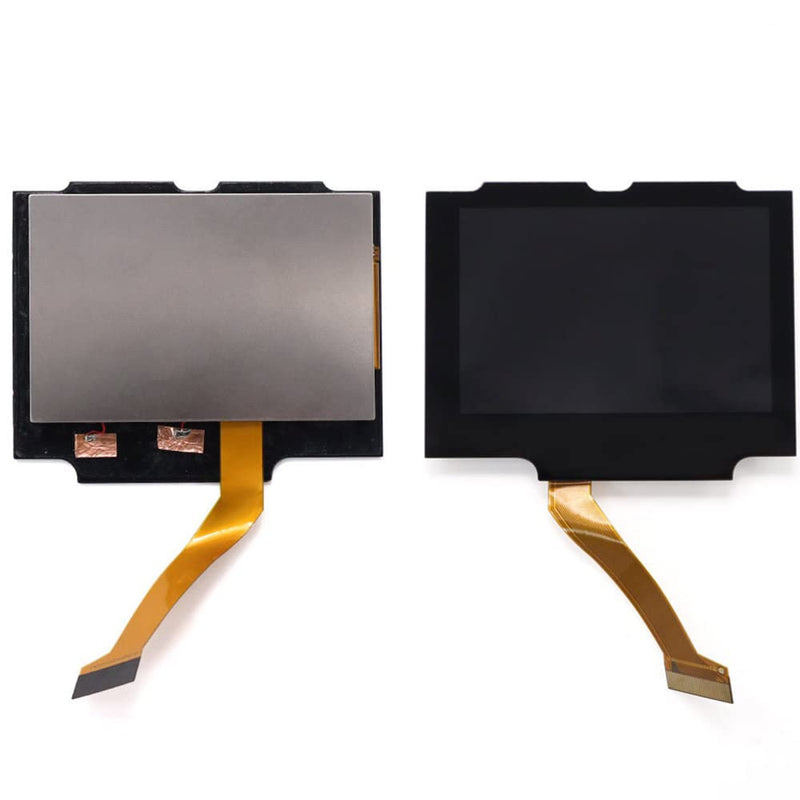

• PCB embedded in the LCD metal shell

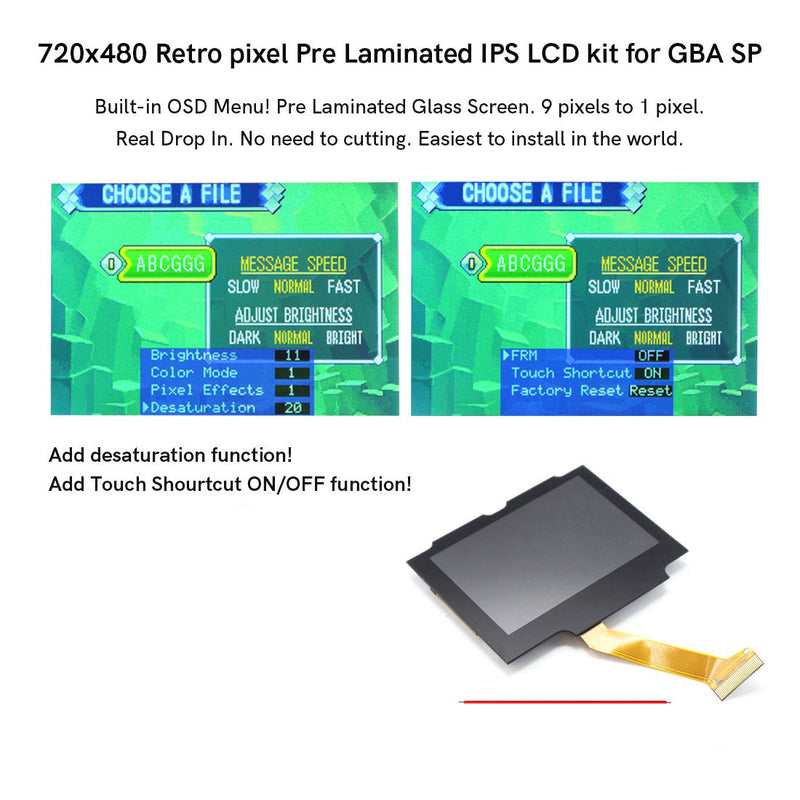

• Built-in On-Screen Display Menu (only one solder required if wanted)

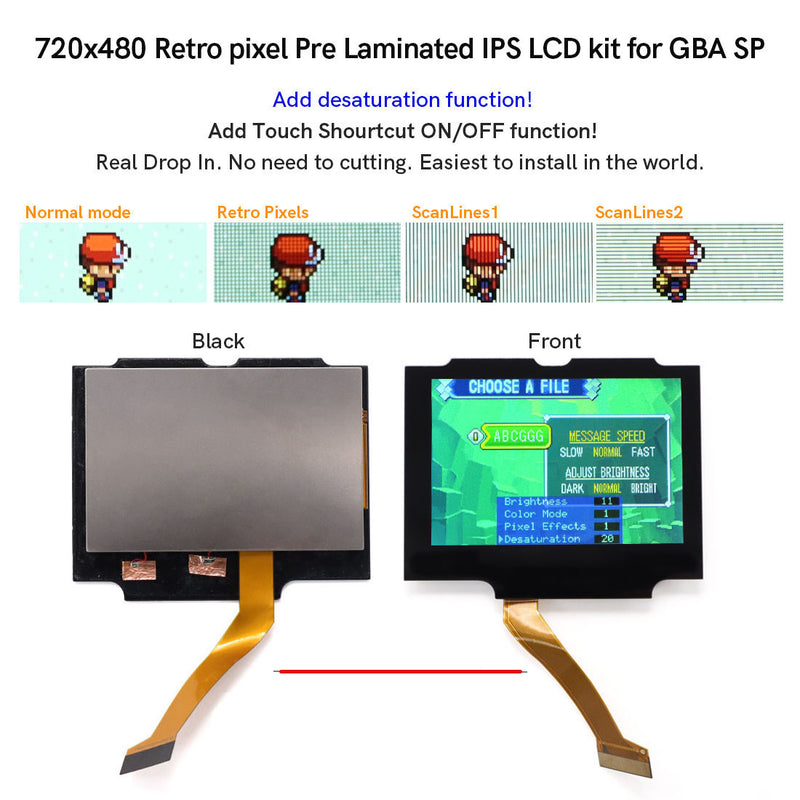

• Retro pixel effects: Normal, Retro pixel (like original AGS-101 LCD), Scanline 1, Scanline 2

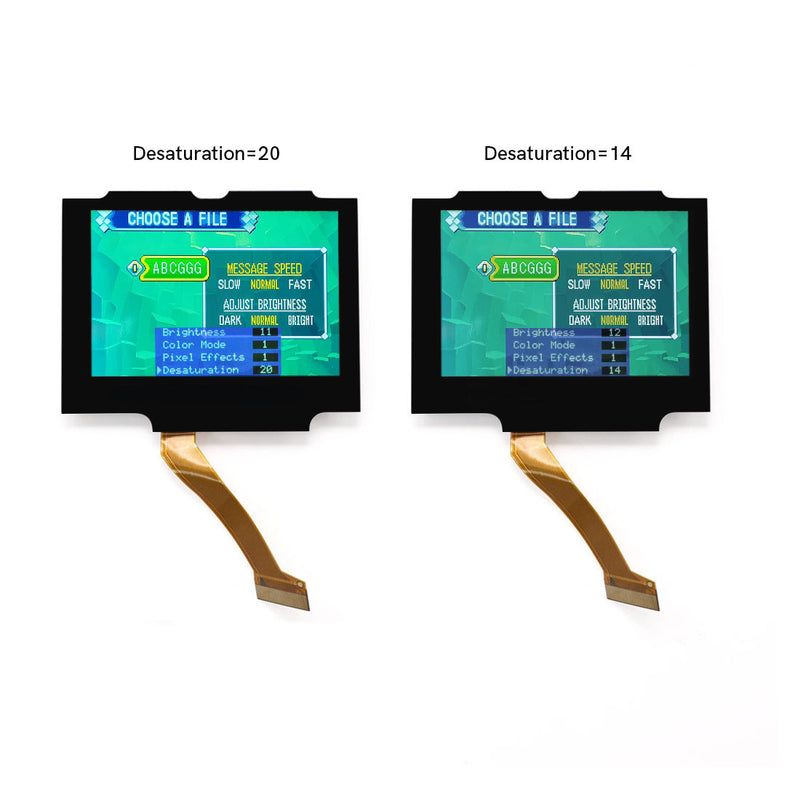

• 15 brightness levels and 20 desaturation effects

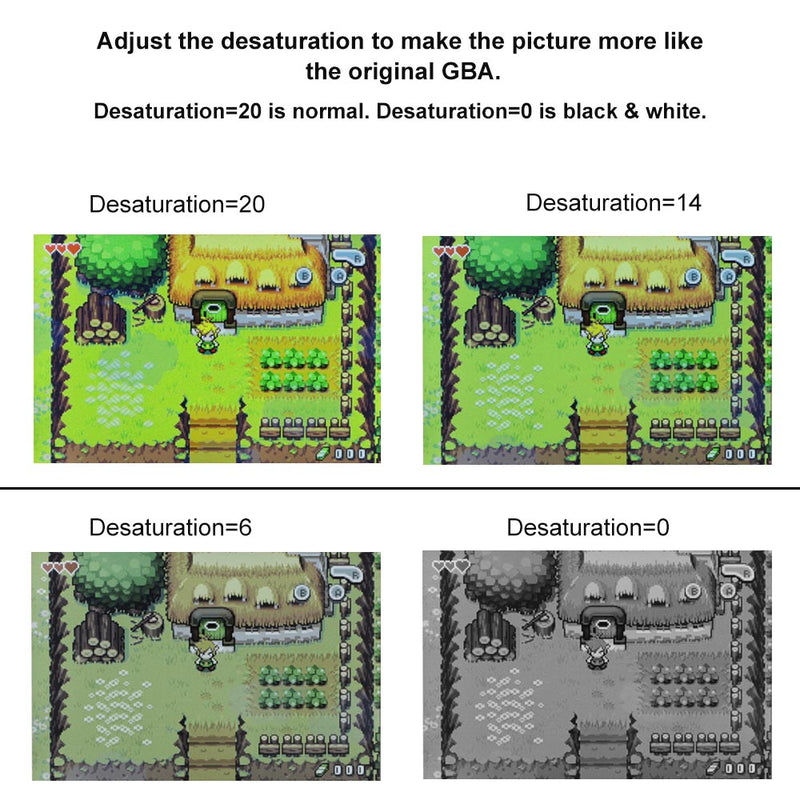

• 20 Desaturation effects
• 8 color modes
• Option to turn off touch sensor functions (Touch Shortcut)

• Frame blending function (OSD Menu only)

• Touch pad functionality for brightness, color, and pixel mode adjustments
• Ribbon now has two points to solder to for the brightness wire. Both work, an extra is included as a backup
• No shell modification not required

Included

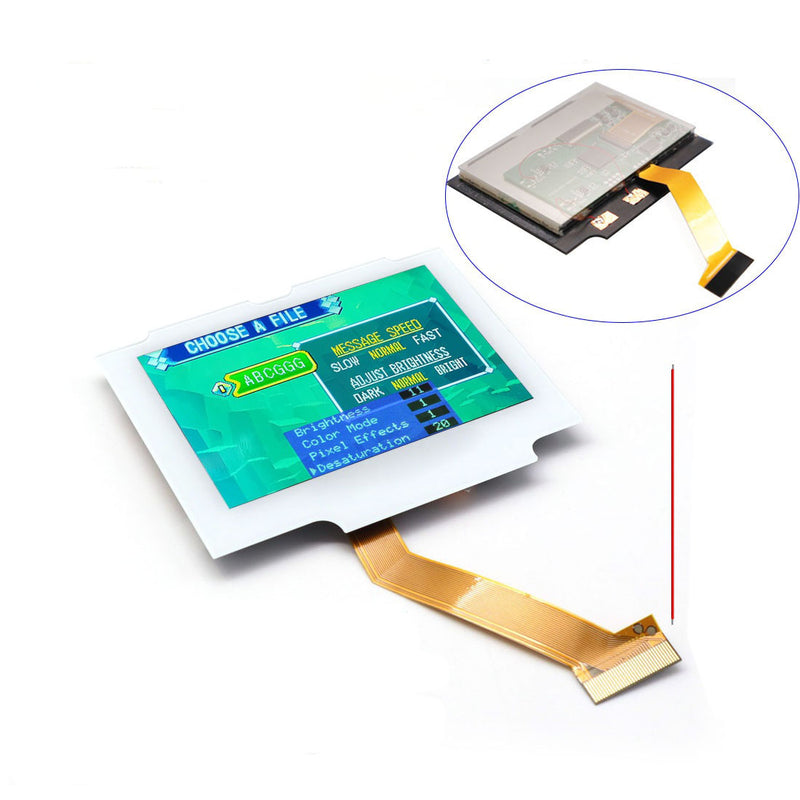

• 1x LCD with adhered lens and integrated PCB ribbon cable
• 1x Wire

Documentation

Touch sensor use:

• Once installed, press and hold down the left touch pad to cycle the color modes.
• Press and hold down the right touch pad to cycle pixel effects.
• Tap the right touch pad to cycle brightness.

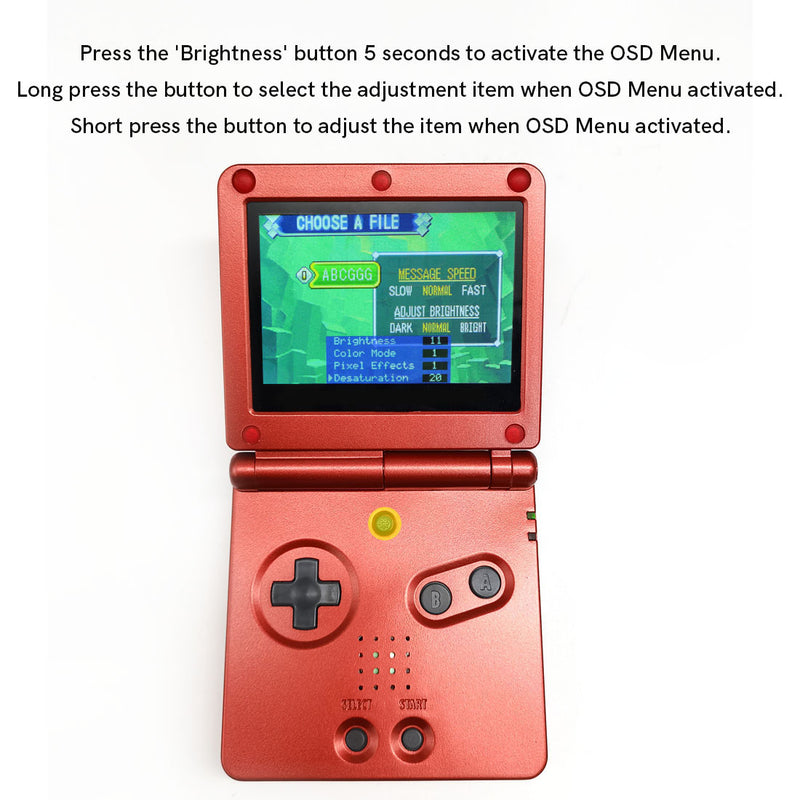

Menu Operation (if optional brightness wire is soldered):

• Hold the brightness button down for 5 seconds to activate the OSD menu.
• Long press the button while in the menu to select the adjustment item (Brightness, Color, Pixel).
• Quick press the button to adjust the selection.


Warning

• We strongly recommend testing the display before installing it in your console. Please follow our Display Testing Guide to confirm the kit is working before the adhesive is secured, the display protection sheet removed, or any non-critical soldering to the ribbon or driver PCB. We are unable to accept returns or replacements on kits that have been installed in a console. Individual replacement parts may be available in the "Included" section above.
• The ribbon is very fragile, be sure to handle it carefully to avoid damage.
• Too much pressure can permanently damage the display, do not force the shell closed around the LCD. Ensure the shell is properly trimmed for the display before attempting to install it.
