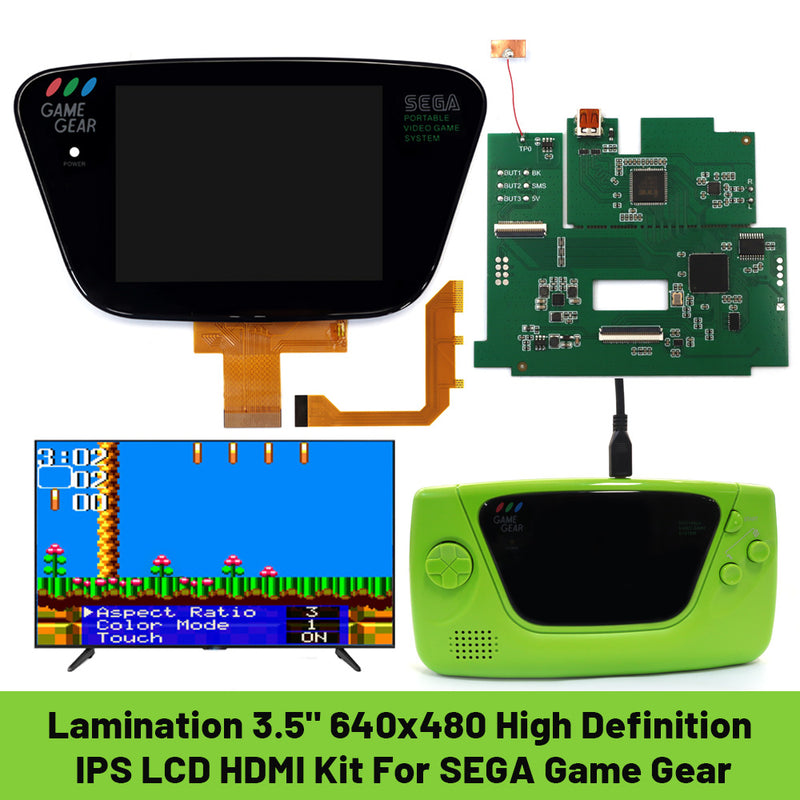

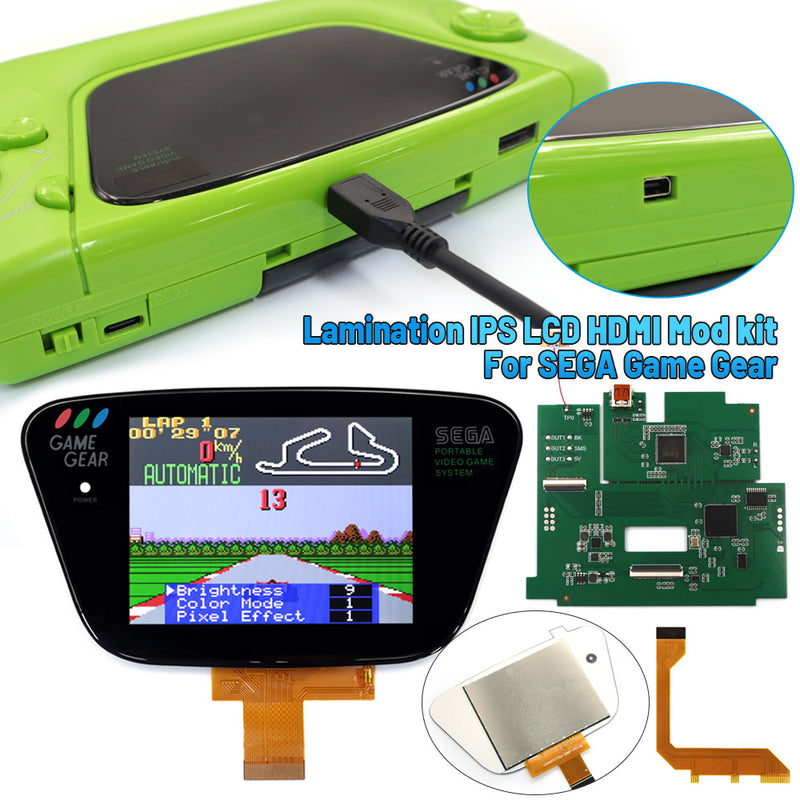

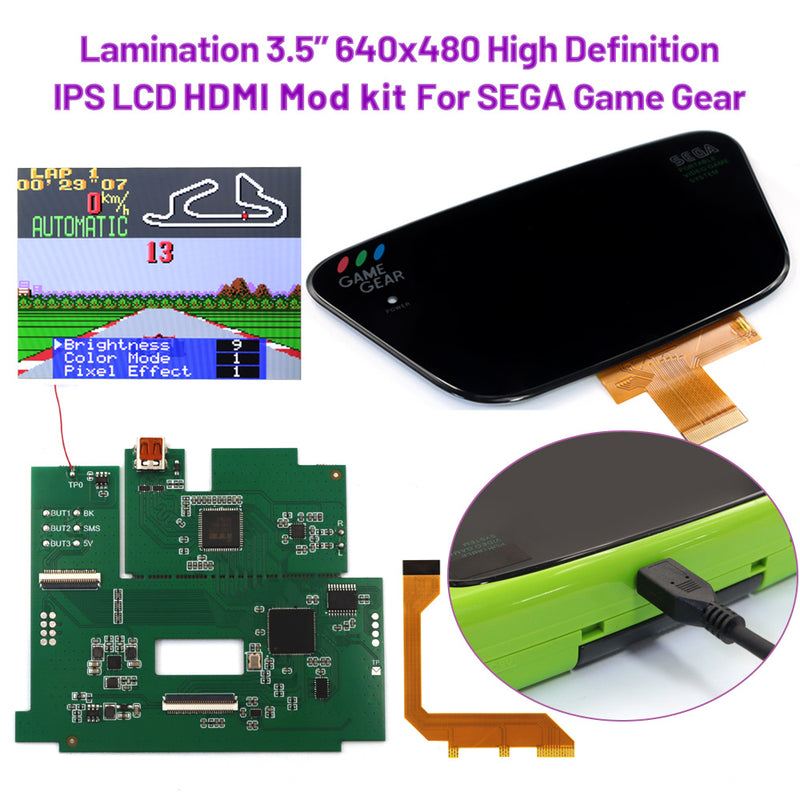

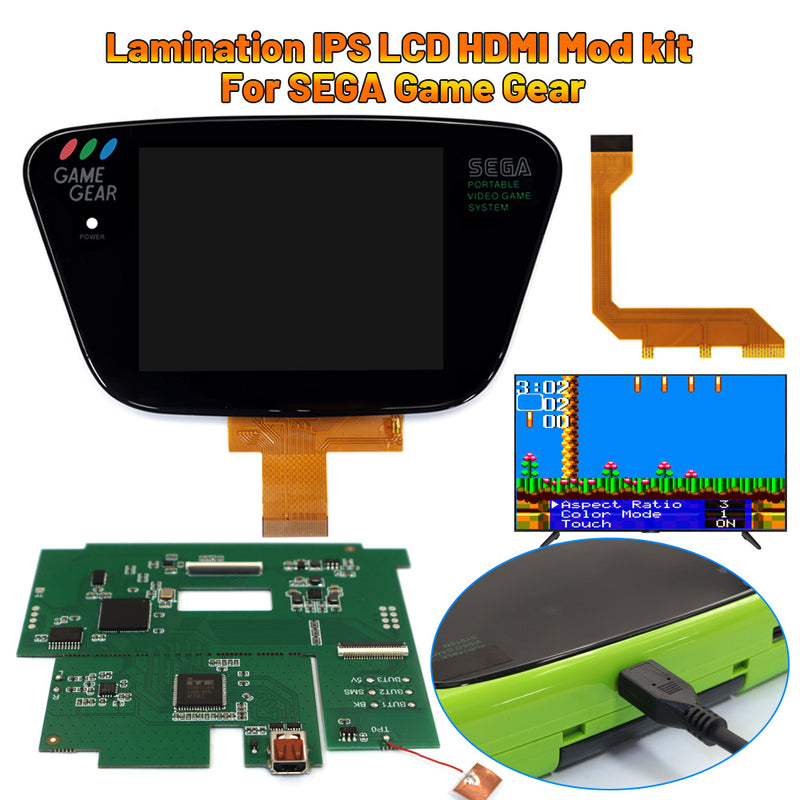

Laminated 3.5" 640x480 HD Retro Pixel IPS LCD Kit For For SEGA Game Gear with HDMI

NOTE: This is the HDMI output version; shell trimming is needed to access the HDMI port.

Shells can be found here: Hispeedido Shell for Sega Game Gear Laminated Screens

This display by Hispeedido is the new standard and can be connected to a TV with its onboard HDMI output. Don't hesitate to upgrade your console now and play on the big screen!

Please note that this kit requires more soldering than a typical IPS display installation.

Compatibility

Support single-chip (1 ASIC) and dual-chip (2 ASIC) motherboards:

Single chip motherboard 1 ASIC PCB revisions numbers:

• 837-9130
• 837-9024
• 837- 8560

Dual chip motherboard 2 ASIC PCB revisions numbers:

• 837-7996
• 837-7719-01 VA0
• 837-7398-03

Not compatible with:

• Majesco Game Gear VA4 / VA5
• Motherboard with the "MADE IN TAIWAN" mention



Features

• 640x480 display resolution
• Trimming required

• Wide View angle up to 178 degrees
• Built-in OSD Menu
• Retro pixel Effects: Normal, Retro pixel, Scanline 1, and Scanline 2
• 5 brightness levels
• 8 color modes
• 3 LCD Aspect Ratio
• 720P HDMI Output with 3 different aspect ratios.

• Image position is adjustable. No worry about aligning the LCD screen
• FPC connect cable design. Simpler wiring and easier installation.


OSD Menu Operation:

1. Hold down: START, 1, and 2 buttons for 1 second to activate the OSD Menu
2. Press the START button to select the adjustment item
3. Press the 1 or 2 button to adjust the item

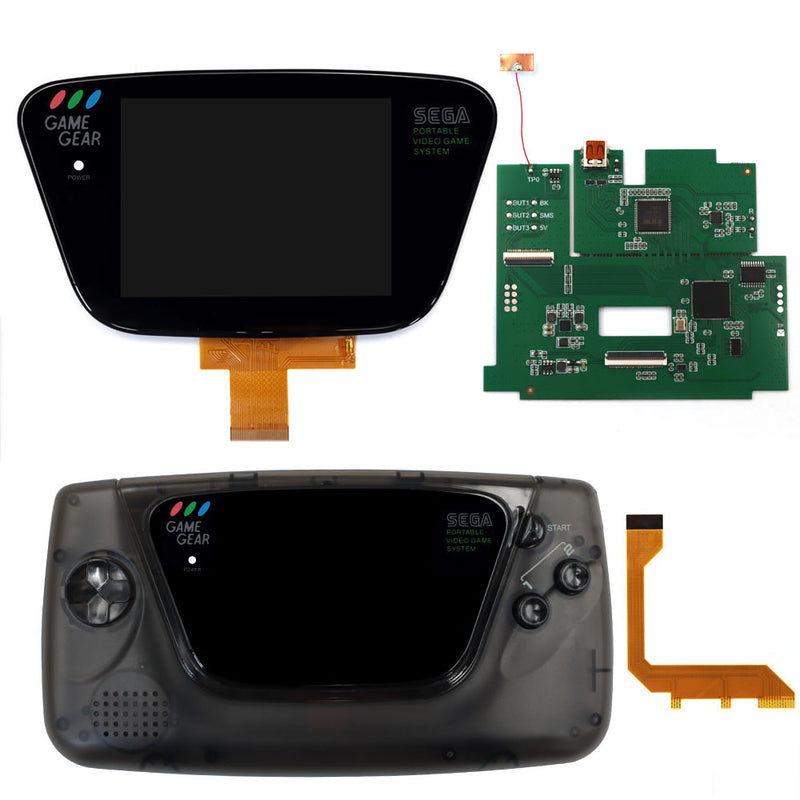

Included

• 1 x Backlight LCD
• 1 x FPC connect cables
• 1 x Double-sided tape
• 5 x 10pF capacitors
• 2 x 200Ohm resistor
• Wires
• 1x HDMI PCB version

• 1x HDMI adapter cable
