V5 IPS LCD Backlight Kit with Laminated Lens and OSD Kit for Game Boy Advance

Give your GBA a modern look with this new Hispeedido display!

Please read the product description carefully and in its entirety before purchasing.

* Current listing images show a solid black front design, but each Black, White, GB Gray, and SFC type are designed according to the type.

Features

• Easy to install!
• Pre-Laminated Glass Screen

• Drop-in ready/compatible only with Hispeedido Laminated Shells.

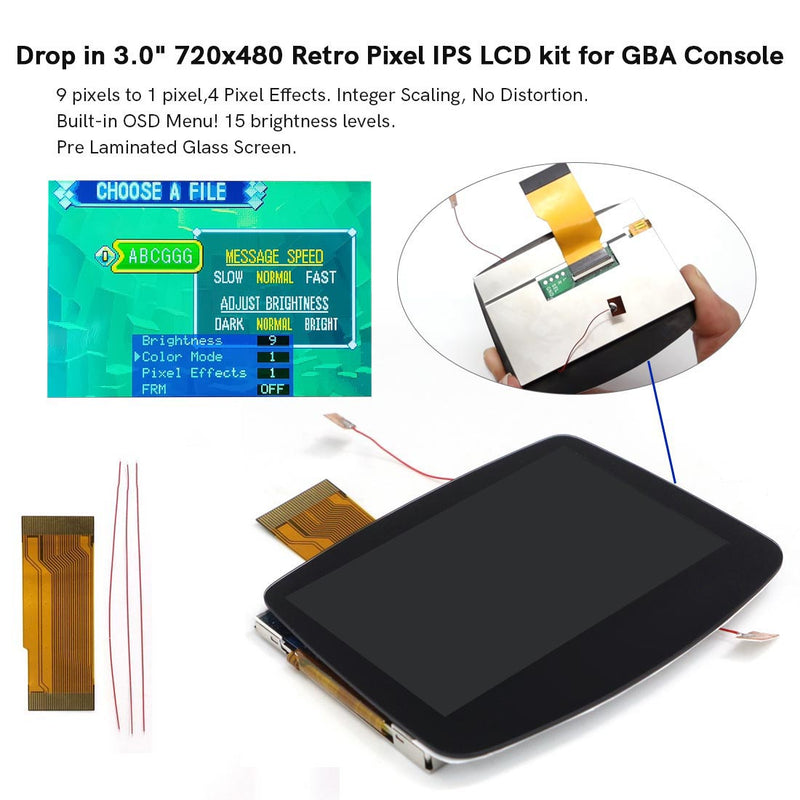

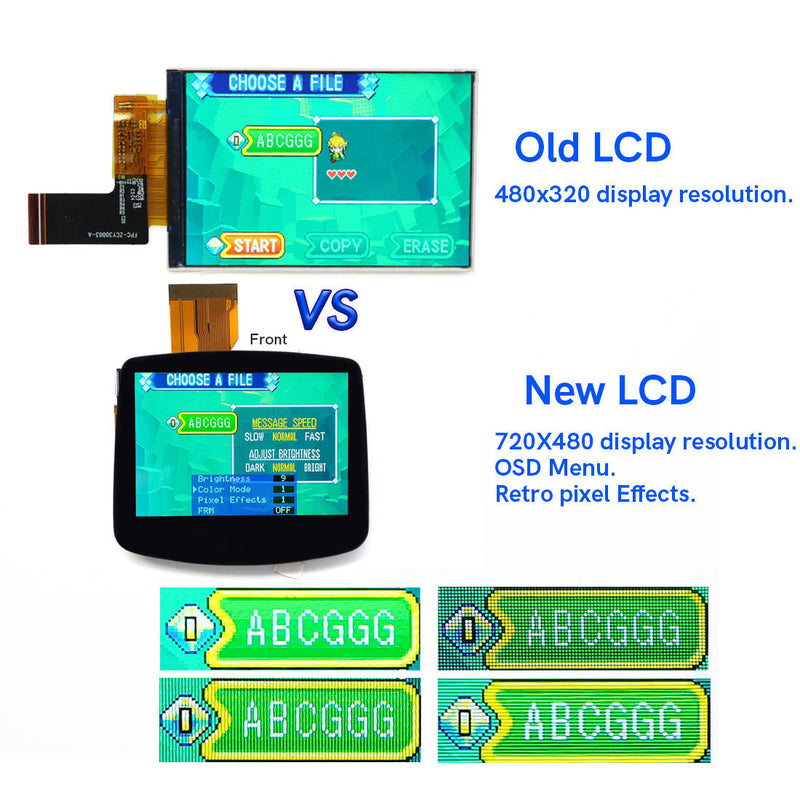

• 720x480 Display resolution (HD LCD, 9 pixels to 1 pixel, Integer Scaling, No distortions)
• Wide View angle (up to 178 degrees)

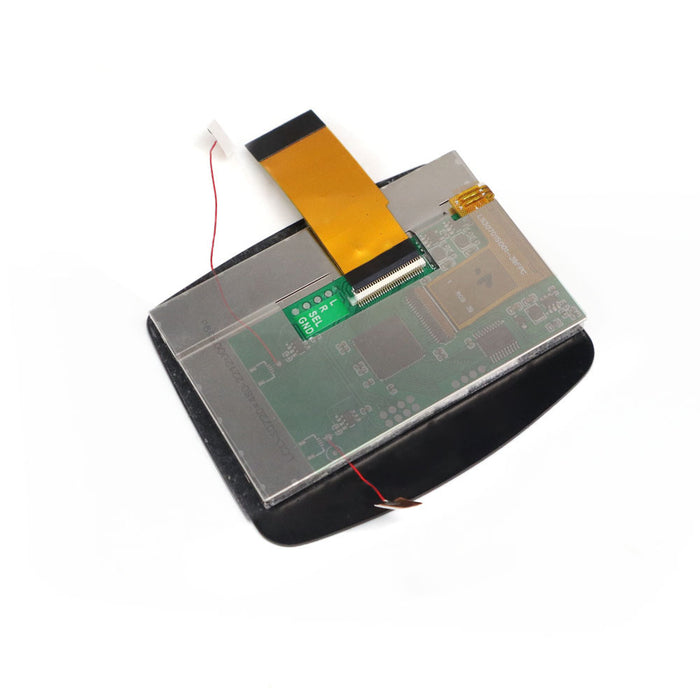

• PCB embedded in the LCD metal shell
• Built-in On-Screen Display Menu (only one solder required if wanted)

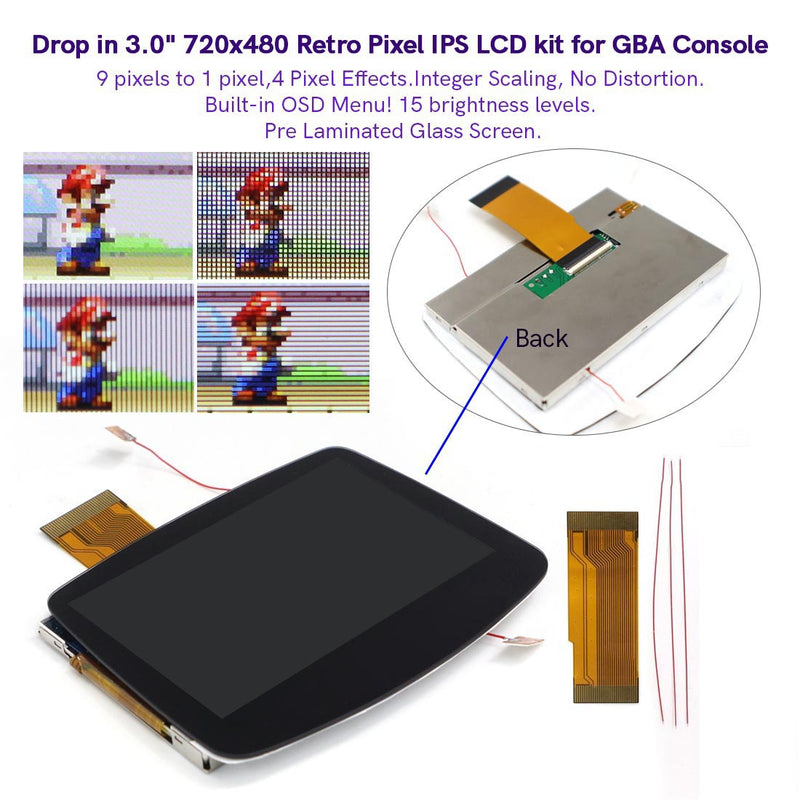

• Retro pixel effects: Normal, Retro pixel (like original AGS-101 LCD), Scanline 1, Scanline 2
• 15 brightness levels

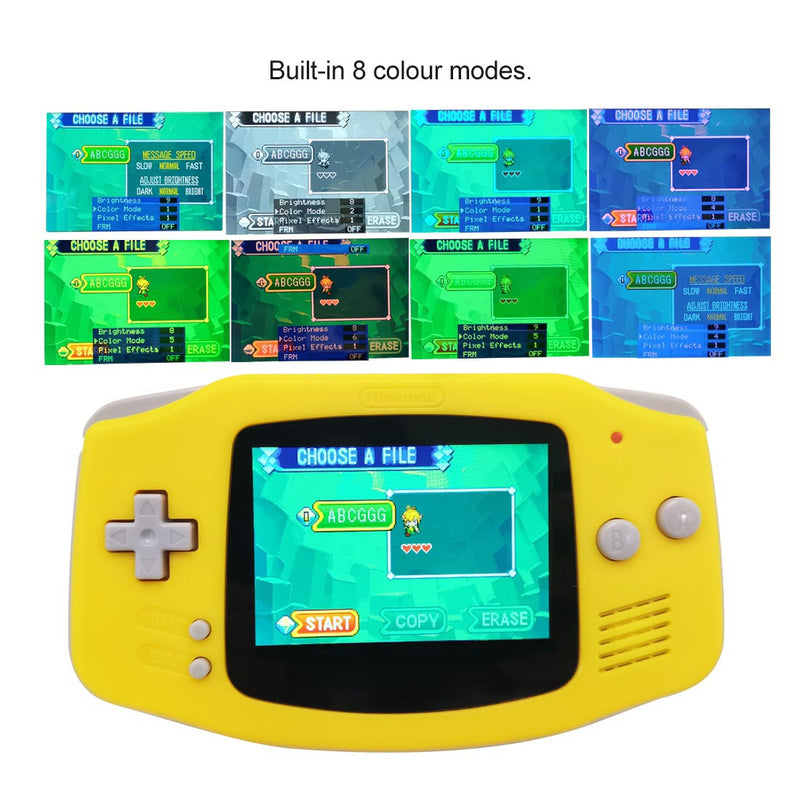

• 8 color modes
• Frame blending function (OSD Menu only)

• Touch Screen to change the brightness and the color modes
• Compatible with 32-pin and 40-pin GBA Console

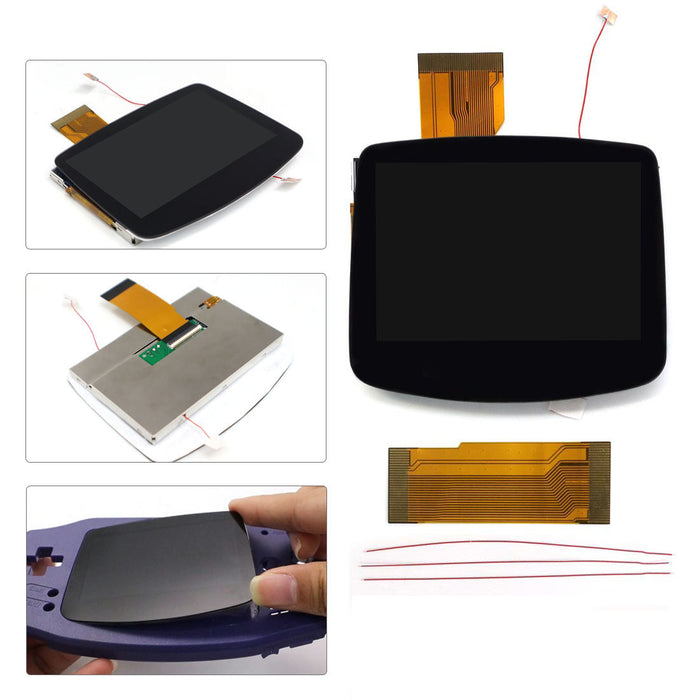

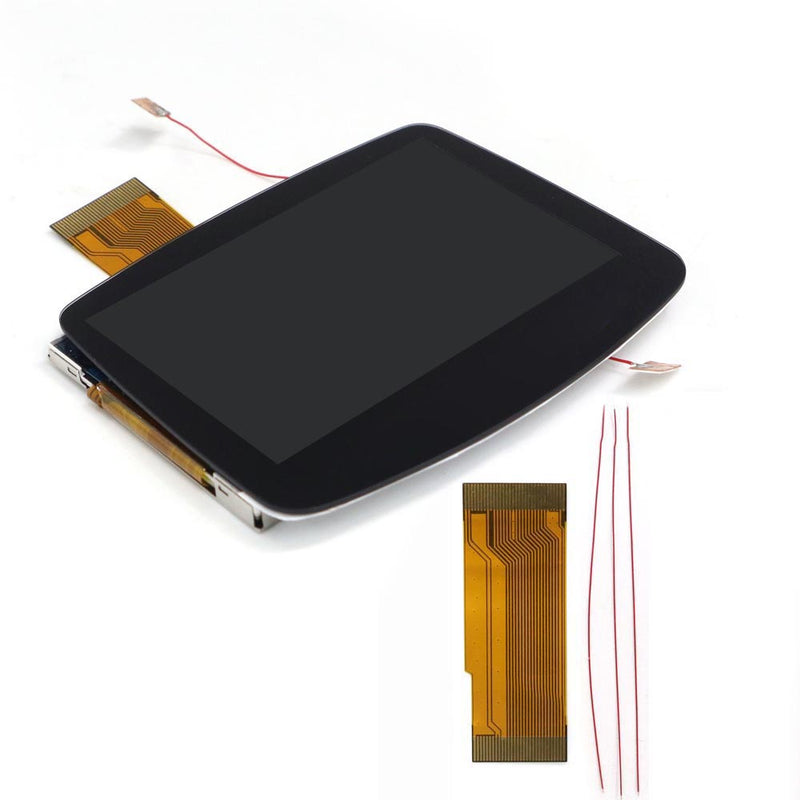

Included

• 1x IPS LCD with adhered lens, integrated PCB, with two pre-soldered touch sensor wires

• 1x 40 pin ribbon
• 1x 32 pin ribbon
• 3x Red wires

Documentation

OSD Menu Operation:

1. Activate the OSD Menu by pressing the Select + L + R buttons at the same time, for 1 second, then release;
2. Press the Select button when the OSD Menu is activated, to select the adjustment item;
3. Then press the L or R button to adjust the selected item's value;


Notes

• We recommend using Hispeedido's dedicated shell for this kit as all non-laminated shells may require heavy trimming in order to be compatible.

• Not compatible with FunnyPlaying laminated shells or other laminated shells.
• In rare cases, the image will be better when FRM setting is turned on, for most games, FRM is not required.

Warning

• We strongly recommend testing the display before installing it in your console. Please follow our Display Testing Guide to confirm the kit is working before the adhesive is secured, the display protection sheet removed, or any non-critical soldering to the ribbon or driver PCB. We are unable to accept returns or replacements on kits that have been installed in a console. Individual replacement parts may be available in the "Included" section above.
• The ribbon is very fragile, be sure to handle it carefully to avoid damage.
• Too much pressure can permanently damage the display, do not force the shell closed around the LCD. Ensure the shell is properly trimmed for the display before attempting to install it.

• Removing pre-adhered lens from LCD can result in damage to the LCD and will void product warranty.
