3.5" 640x480 Retro Pixel HD IPS LCD Kit for for SEGA Game Gear

NOTE: This is NOT the HDMI version. The version with HDMI output is HERE.

It's time to upgrade your old power-hungry Game Gear screen. This display by Hispeedido is the new standard. Filled with features and an easier installation process, don't hesitate to upgrade your console now!

Please note that this kit requires more soldering than a typical IPS display installation.

Pairs nicely with Hispeedido Shell for Sega Game Gear

Compatibility

Support single-chip (1 ASIC) and dual-chip (2 ASIC) motherboards:

Single chip motherboard 1 ASIC PCB revisions numbers:

• 837-9130
• 837-9024
• 837- 8560

Dual chip motherboard 2 ASIC PCB revisions numbers:

• 837-7996
• 837-7719-01 VA0
• 837-7398-03

Not compatible with:

• Majesco Game Gear VA4 / VA5
• Motherboard with the "MADE IN TAIWAN" mention



Features

• 640x480 display resolution
• No shell trimming required
• Same display size as the original screen
• Wide View angle up to 178 degrees
• Built-in OSD Menu
• Retro pixel Effects: Normal, Retro pixel, Scanline 1, and Scanline 2
• 5 brightness levels

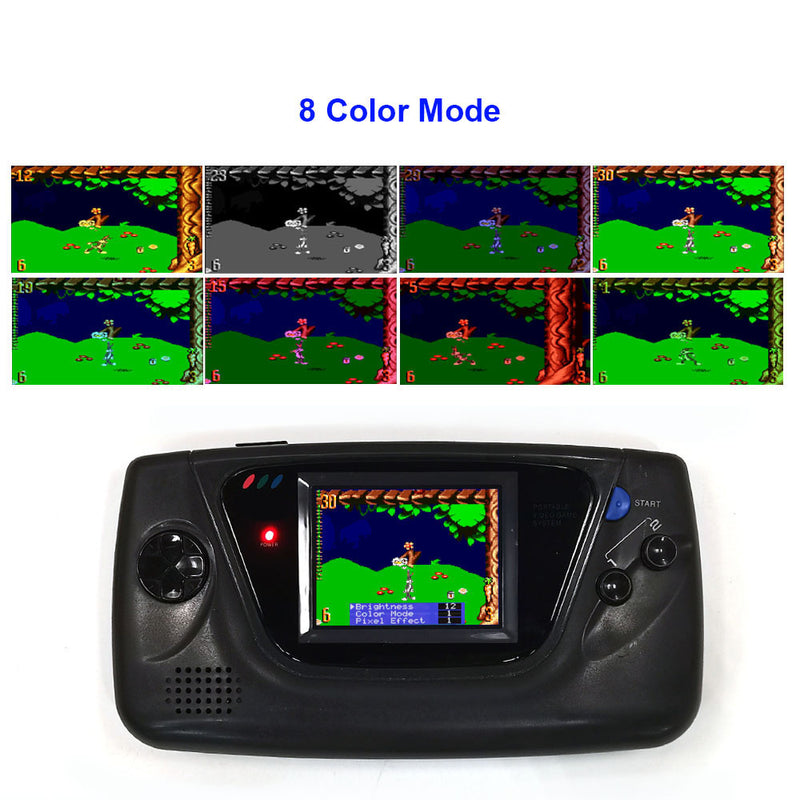

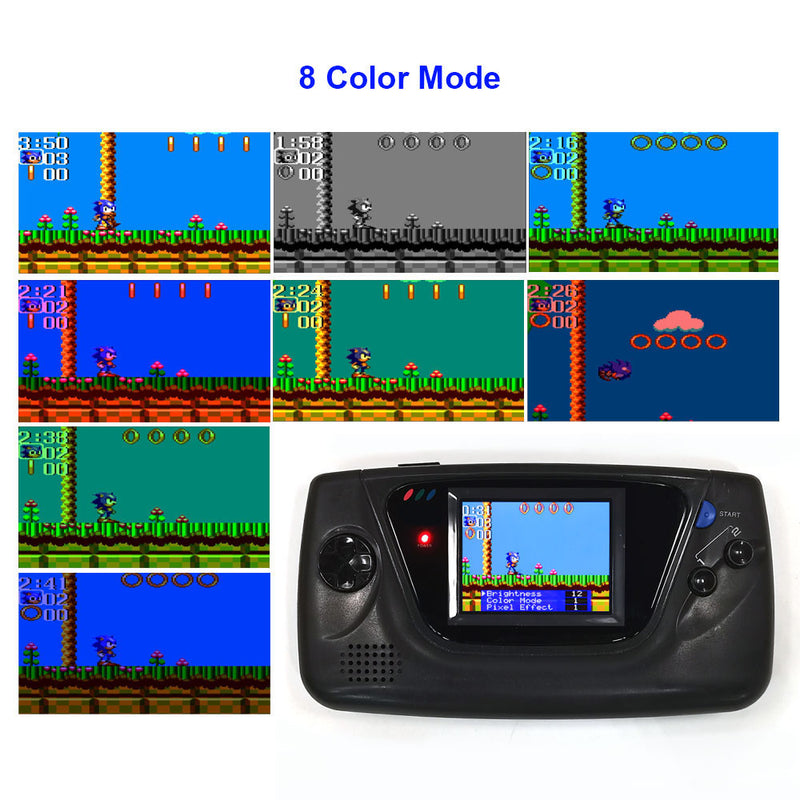

• 8 color modes
• 3 LCD Aspect Ratio
• Image position is adjustable. No worry about aligning the LCD screen
• FPC connect cable design. Simpler wiring and easier installation.

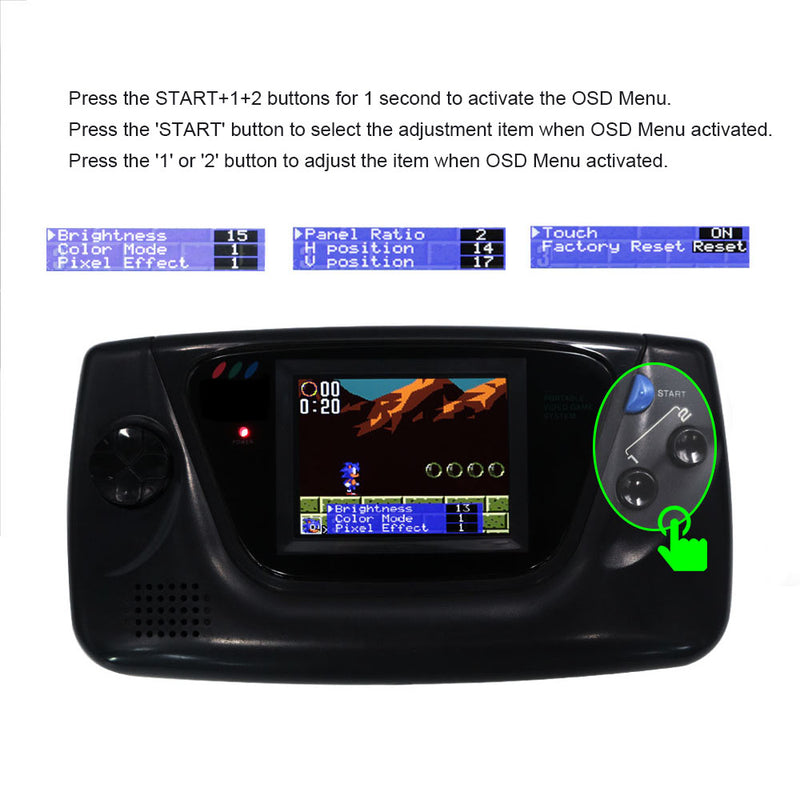

OSD Menu Operation:

1. Hold down: START, 1, and 2 buttons for 1 second to activate the OSD Menu
2. Press the START button to select the adjustment item
3. Press the 1 or 2 button to adjust the item

Included

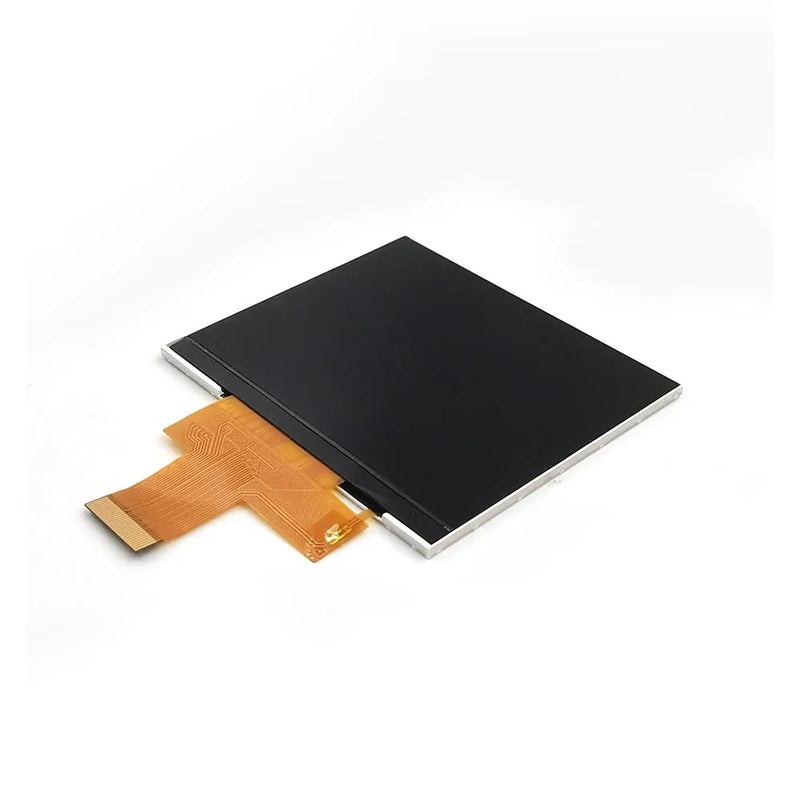

• 1 x Backlight LCD
• 1 x FPC connect cables
• 1 x Double-sided tape
• 5 x 10pF capacitors
• 2 x 200Ohm resistor
• Wires
• 1x Glass screen lens
