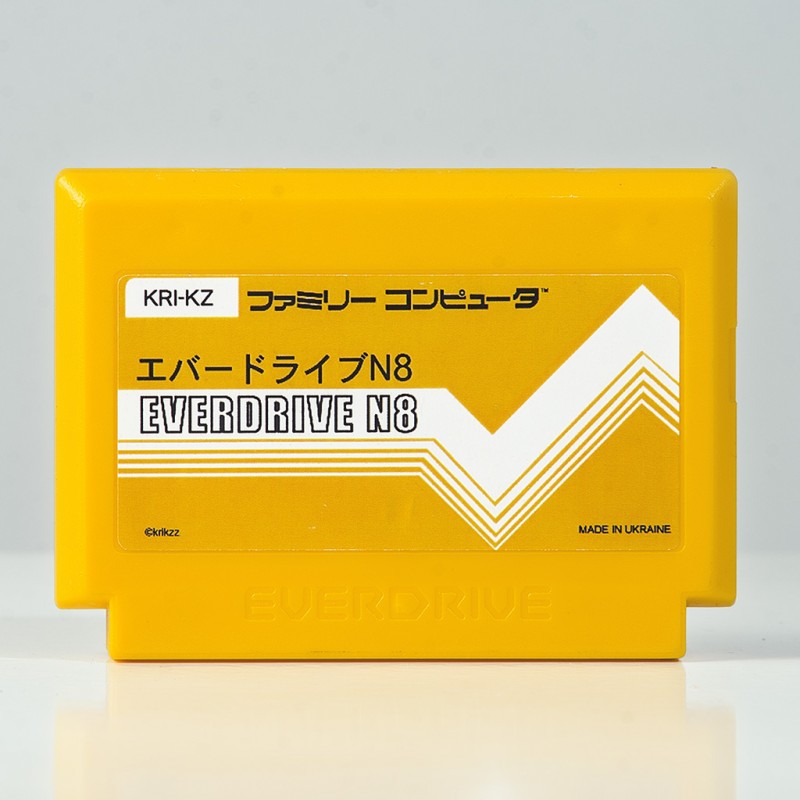

Krikzz's EverDrive N8 Famicom

Enjoy your favorite Famicom games and ROM hacks on one convenient, SD-compatible flash cartridge. Reliable and easy to use, it's never been easier to return to the best retro titles the Famicom and Nintendo Entertainment System have to offer.

Features

• Supports Famicom, NES, and Twin Famicom systems, as well as many NES and FC clones
• Cart supports NES and FDS ROM images
• Automatic disk side swap for FDS
• Expansion audio supported on Famicom
• Includes save state functions
• Supports Game Genie cheat codes
• Automatically backs up saves to SD card without requiring you to push the reset button before shutting down the system with the exception of the FDS
• Mapper support can be extended via software updates
• Supports FAT, FAT16, and FAT32 file system formats
• Supports SD and SDHC cards up to 32 GB
• Fast loading—most games load within 1-2 seconds
• Powerful Cyclone II FPGA.
• 2 x 512 Kbytes SRAM for PRG and CHR data.
• 128 Kbytes battery backed memory that writes to SD card
• Max II CPLD to handle FPGA reconfiguration, BIOS, and SD interfaces.
• 1 Mbyte flash BIOS.
• Voltage shift buffers on PPU and CPU bus for matching levels between 5 V NES bus and 3.3 V EverDrive bus, which reduces noise and power consumption more than simple resistor buffers

Documentation

• OS Update
• Development

Included

• 1 x EverDrive N8 Famicom

Notes

• SD card sold separately
• If using the Famicom version of this cart, you will need to use a Famicom to NES adapter in order to use it in your Nintendo Entertainment System. The same holds true with the NES cart in that it requires a NES to Famicom adapter to be used in the Famicom
• NES systems require modification to support expansion audio
• FDS users must push the reset button on system to get back to main menu before shutting down the system to prevent FDS save data from being lost
• The following mappers are supported:
